Optic patch panel also named 19 inch ODF , provides branch connection for fiber termination. It is an integrated unit for fiber management, and can be used as distribution box. It divides into fix type and sliding-out type. This equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection. Fiber optic termination box is modular so they are applocable to your existing systems without any modification or additional work.
Suitable for installation of FC, SC, ST, LC, etc. adaptors, and suitable for fiber optic pigtail or plastic box type PLC splitters.
Technical Parameters:

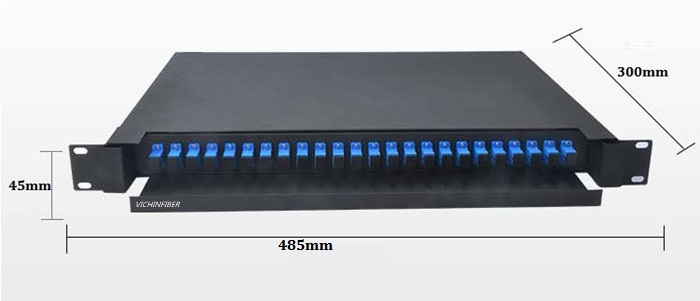

| Product Name | Protruding type 19 inch 1U SC/UPC 24 port fiber optic patch panel | ||
| Product Type | rack mounted with lead rail and lock | Port Number | 24 ports |
| Adapter Type | SC | Dimension | 485*300*45mm |
| Color of Panel | Black | Weight | 5.5 kg |
| Material | 1.0mm Q235 cold rolled steel sheet | Working temperature | -40℃ ~ + 60℃ |
| Curvature radius | ≥40mm | Lateral pressure-resistance | 500N |
| Resistance | 500N | Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
