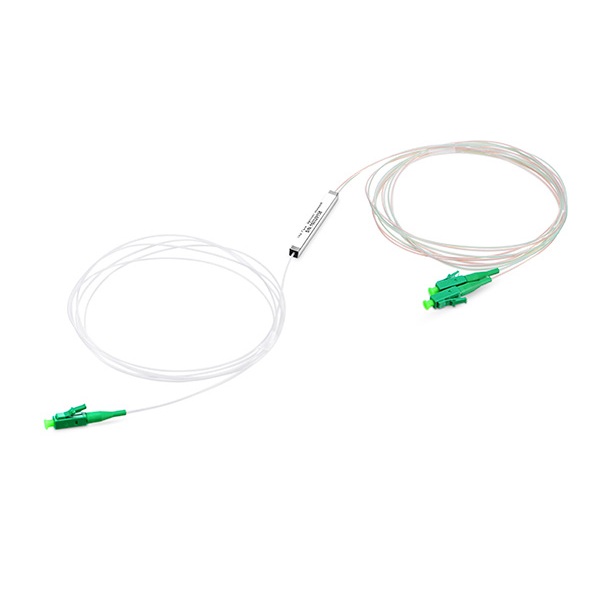

| Product Type | Micro type with number tube | Operating Wavelength(nm) | 1260～1650 | |||
| Input Fiber Length(m) | 1 | Output Fiber Length(m) | 1 | |||
| Input pigtail color | white | Output pigtail color | white | |||
| Operating Temperature(℃) | -40～85 | Storage Temperature(℃) | -40～85 | |||
| Cable(mm) | 0.9 | Fiber Type | G657A | |||
| Connector Type | SC or LC | Package | 1 pc/blister | |||
| 1xN PLC Splitter | |||||||||||||
| Parameter | Unit | Value | |||||||||||
| Product Type | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 | ||
| Operting Wavelength | nm | 1260～1650 | |||||||||||
| Insertion Loss | Typ. | dB | 4 | 6 | 7 | 9.4 | 10 | 12 | 13.2 | 16 | 16.5 | 20.5 | 24.5 |
| Max | dB | 4.3 | 6.2 | 7.4 | 9.8 | 10.7 | 12.5 | 13.9 | 16.5 | 17.2 | 21.5 | 25.5 | |
| Uniformity(Max) | dB | 0.5 | 0.6 | 0.8 | 0.8 | 1 | 1 | 1.4 | 1.5 | 1.6 | 2 | 2.6 | |
| PDL(Max) | dB | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | |
| TDL(Max) | dB | 0.5 | |||||||||||
| Return Loss | dB | ≥55/50 | |||||||||||
| Directivity | dB | ≥50 | |||||||||||
| Operting &Storage Temperature | ℃ | —40～+85 | |||||||||||
| Note:All the date above does not include connectors,UPC Connectors,IL add 0.2dB,APC Connectors,IL add 0.3dB | |||||||||||||
